Fogtools

FogTools

FogTools lets you create custom fog and skies with colors, gradients, animated colors and auroras. You can use commands or a visual editor that updates live.

The mod is 100% client-side: install it on your client and it works in singleplayer and on any server. To send fogs to other players (@a, specific players, server-wide biome fogs and auroras), use the FogTools Plugin on your Paper server.

---

What's new in 1.5.1

• Biome auroras: give any biome its own aurora. It appears when you enter the biome and fades out when you leave.
• A biome can now have a fog, an aurora or both
• Forge support: 1.20.1, 1.20.4
• NeoForge support: 1.20.1, 1.20.4, 1.21.1, 1.21.4, 1.21.5, 1.21.8, 1.21.11, 26.2
• Better editor performance: fixed the FPS drop while the editor is open (1.21.8, 1.21.11 and 26.2)

What's new in 1.5

• Visual editor (GUI) with a color wheel, a live preview and a keybind (G by default)
• Gradients with any number of colors, each placed where you want on the color bar
• Custom rotation: tilt the gradient to any angle (for example 45 degrees for a diagonal sky)
• Animated colors: any color point can loop through several colors, each with its own timing
• Translucent color NONE: leaves gaps in the fog so the original sky shows through

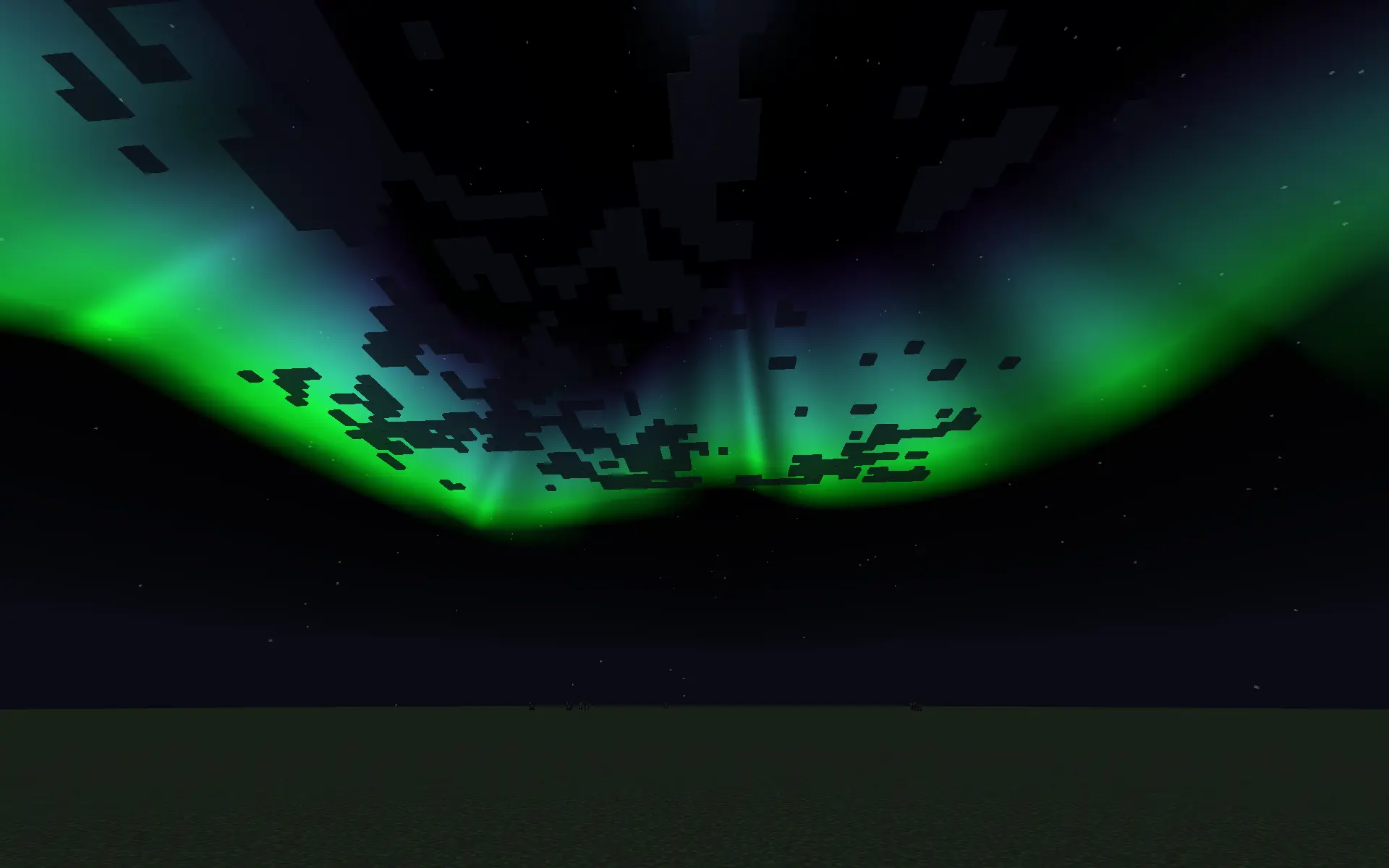

• Auroras: animated curtains in the sky, with custom colors, height, intensity and speed
• Smooth transitions between fogs, biome fogs and auroras, even when a fade is interrupted
• Copy and paste fogs as text with /fogtools copy and /fogtools paste (works from the clipboard)
• Fixed client biome fog commands
• Smoother color rendering: less banding and no pixelated gradients
• Chat messages only show in creative mode (errors are always shown)
• New version: 26.2

---

Supported versions

Loader	Versions
Fabric	1.20.1 - 1.20.4 - 1.21.1 - 1.21.4 - 1.21.5 - 1.21.8 - 1.21.11 - 26.2
Forge	1.20.1 - 1.20.4
NeoForge	1.20.1 - 1.20.4 - 1.21.1 - 1.21.4 - 1.21.5 - 1.21.8 - 1.21.11 - 26.2

---

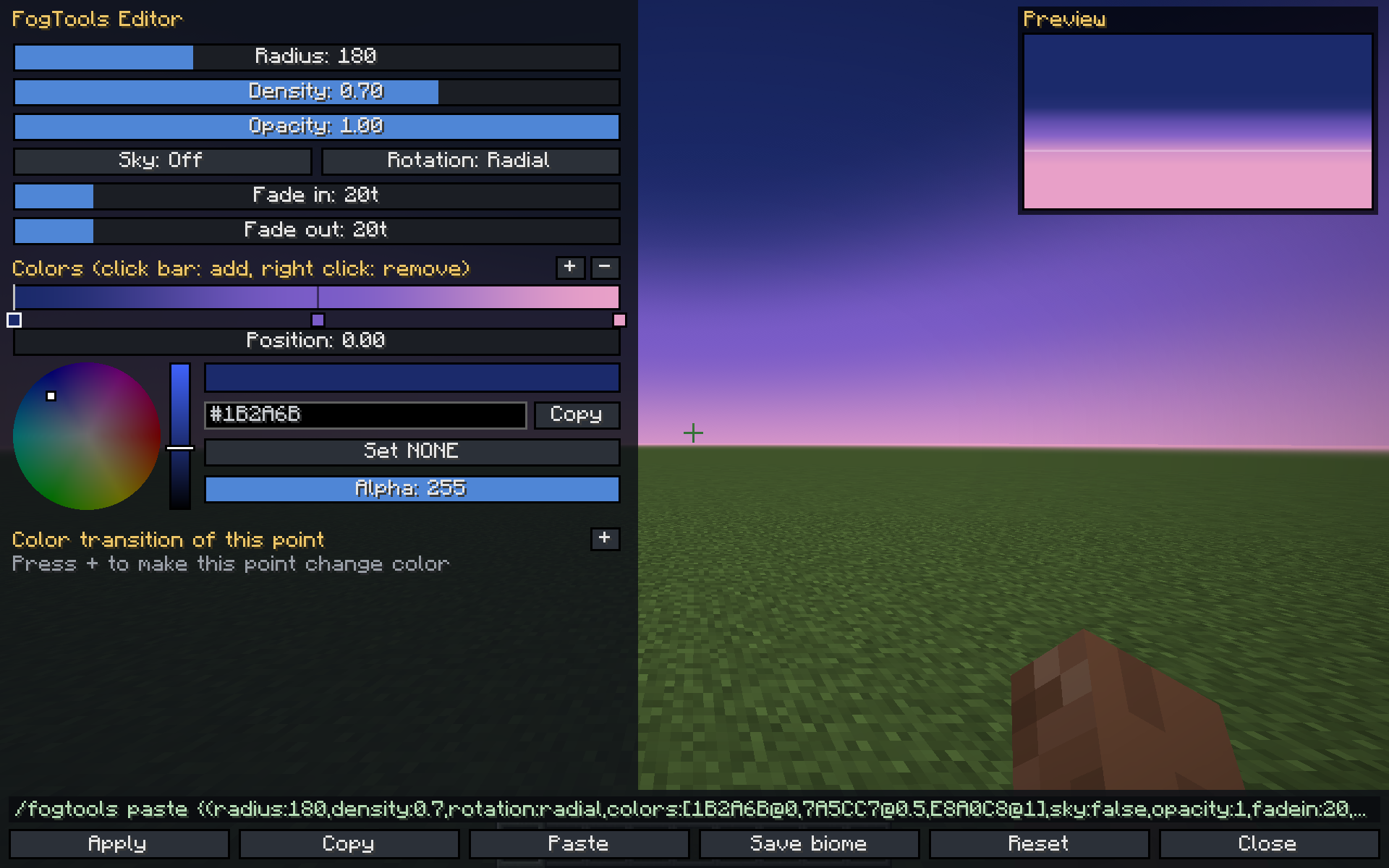

Visual editor

Press G (can be changed in Controls > FogTools) or run /fogtools editor.

• Change radius, density, opacity, sky, rotation, fade in and fade out with sliders
• Color bar: left click to add a color, drag to move it, right click to remove it
• Color wheel with brightness, alpha, a HEX field and a NONE (translucent) option
• Copy the HEX of the selected color with Ctrl+C or right click
• Animated colors: select a color point and press + to add colors it will loop through, each with its own time in ticks
• Live preview: the world behind the editor shows your fog in real time
• The editor builds the /fogtools paste command for you. Click it to copy it.
• Buttons: Apply, Copy, Paste, Save to biome, Reset, Close. Closing without applying brings back your previous fog.
• Arrow keys adjust the last slider you used (hold Shift for x10)

---

Commands

All commands are client-side. Fade times are in ticks (20 ticks = 1 second).

Fog

Command	Description
/fogtools set <radius> <density> <color> <sky> <opacity> <fadeIn> <fadeOut>	Single-color fog
/fogtools gradient set <rotation> <radius> <density> <top> <center> <bottom> <sky> <opacity> <fadeIn> <fadeOut>	3-color gradient fog
/fogtools paste [fog]	Applies a fog from text. Without text, it reads your clipboard.
/fogtools copy	Copies the current fog to your clipboard
/fogtools clear	Removes your custom fog with a smooth fade
/fogtools editor	Opens the visual editor

Auroras

Command	Description
/fogtools aurora set <colors> [height] [intensity] [speed] [fadeIn] [fadeOut]	Creates an aurora. Everything after the colors is optional.
/fogtools aurora paste [aurora]	Applies an aurora from text or from the clipboard
/fogtools aurora copy	Copies the current aurora
/fogtools aurora clear	Removes the aurora

• colors: joined with + and no spaces, for example GREEN+AQUA+PURPLE (up to 8 colors)
• height: 0 to 80 (how high in the sky the aurora starts)
• intensity: 0 to 1
• speed: 0 to 10

Auroras are easiest to see at night.

Biome fogs and auroras

Command	Description
/fogtools biome set <biome> <radius> <density> <color> <sky> <opacity> <fadeIn> <fadeOut>	Single-color fog for a biome
/fogtools biome gradient <biome> <rotation> <radius> <density> <top> <center> <bottom> <sky> <opacity> <fadeIn> <fadeOut>	Gradient fog for a biome
/fogtools biome paste <biome> [fog]	Pasted fog for a biome
/fogtools biome clear <biome>	Removes a biome's fog
/fogtools biome aurora set <biome> <colors> [height] [intensity] [speed] [fadeIn] [fadeOut]	Aurora for a biome
/fogtools biome aurora paste <biome> [aurora]	Pasted aurora for a biome
/fogtools biome aurora clear <biome>	Removes a biome's aurora
/fogtools biome list	Lists every biome with a fog or an aurora
/fogtools biome current	Shows the biome you are standing in

Biome fogs and auroras are saved in config/fogtools-biome-fogs.json and fade in and out as you walk between biomes. A biome can have a fog, an aurora or both.

Priority:

• Fog: editor preview > custom fog (commands or server) > biome fog. Running /fogtools clear goes back to the biome fog if there is one.
• Aurora: custom aurora (commands or server) > biome aurora. Running /fogtools aurora clear goes back to the biome aurora if there is one.

---

Arguments

Argument	Values
radius	How far the fog starts
density	0 to 1
color	A color name (RED, GOLD, AQUA...), a HEX like FF5500, a HEX with alpha like 80FF5500, or NONE
sky	true to also color the sky, false for the fog only
opacity	0 to 1
rotation	radial, lineal or custom<degrees> (for example custom45)

Rotation:

• radial: the gradient goes from top to bottom
• lineal: the gradient goes from left to right
• custom: tilts the gradient. 0 is the same as radial, 45 is diagonal, 90 is side to side and 180 is upside down.

---

Paste format

Fogs can be shared as a single line of text. The editor and /fogtools copy create it for you.

{(radius:200,density:0.8,rotation:custom[45],colors:[RED@0,PURPLE:40>CYAN:40@0.5,NONE@1],sky:false,opacity:1,fadein:40,fadeout:40)}

• colors: a list of COLOR@position, with the position from 0 to 1. Without positions, the colors are spread evenly: [RED,WHITE,BLUE].
• Animated color: PURPLE:40>CYAN:40@0.5 loops from purple to cyan and back, 40 ticks per step.
• Minecraft chat only allows 256 characters. For long fogs, copy the text and run /fogtools paste without arguments to paste it from your clipboard.

---

Examples

/fogtools set 100 1 GOLD true 0.6 40 40

/fogtools gradient set lineal 100 1 AQUA RED PURPLE true 0.5 50 50

/fogtools gradient set radial 100 1 GOLD ORANGE BLACK false 1 50 50

/fogtools gradient set custom45 150 0.8 PINK NONE BLUE true 1 40 40

/fogtools aurora set GREEN+AQUA+PURPLE

/fogtools aurora set PINK+PURPLE+BLUE 30 0.8 2 60 60

/fogtools biome aurora set minecraft:snowy_plains GREEN+AQUA+PURPLE

/fogtools paste {(radius:200,density:0.8,rotation:radial,colors:[RED@0,NONE@0.5,BLUE@1],sky:false,opacity:1,fadein:40,fadeout:40)}

---

Server plugin

FogTools Plugin for Paper 1.20.1 - 26.2:

• Send fogs, gradients, pasted fogs and auroras to @a or to specific players
• Server-side biome fogs and biome auroras, including custom and datapack biomes (just type the exact biome id)
• Players need the FogTools mod installed to see the fogs and auroras

---

Compatibility

• Compatible with Sodium and most other mods
• Not compatible with shaders (BSL, Complementary, etc.)
